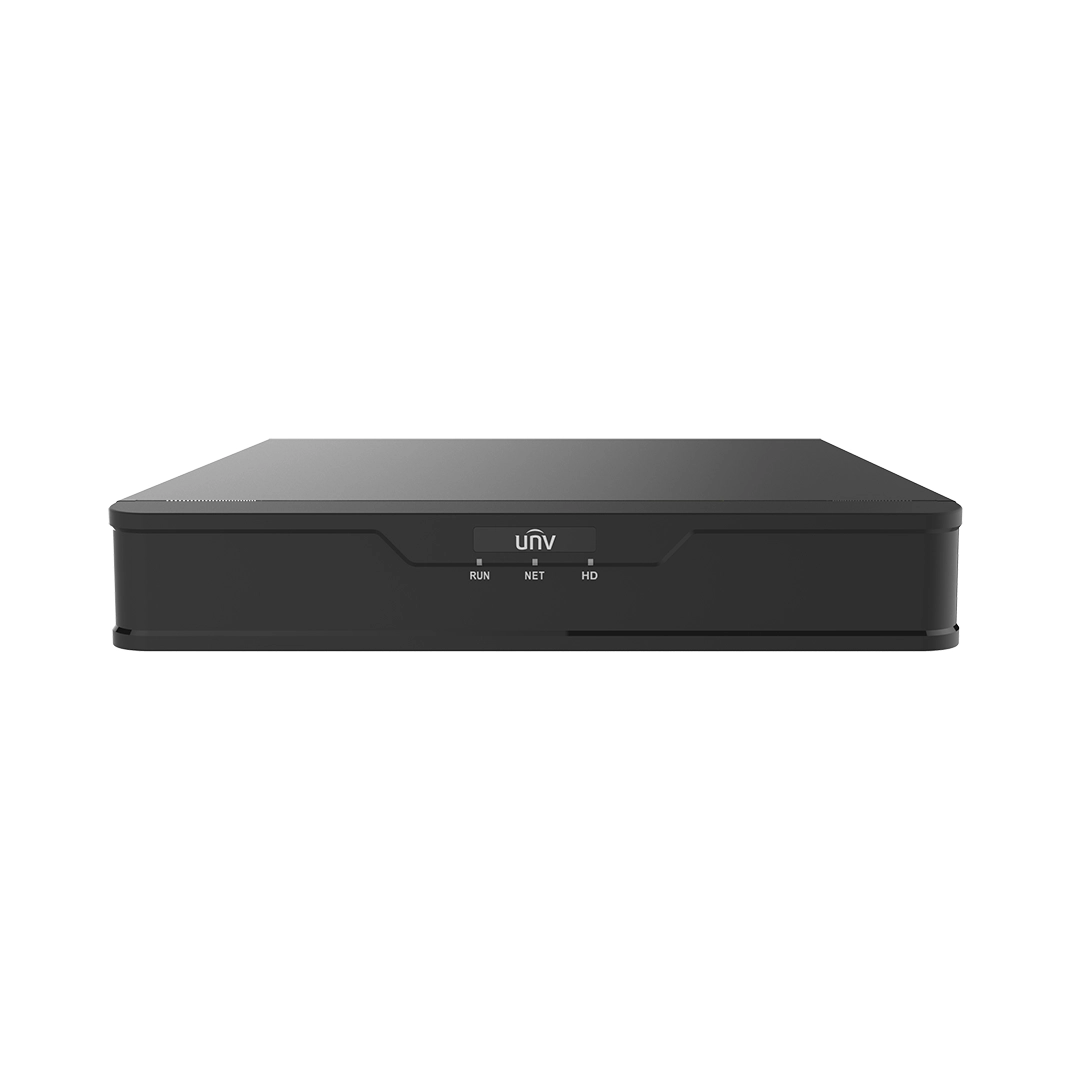

UNV NVR501-08B-P8 8-Channel Network Video Recorder with 8 PoE Ports 16MP

Brand: Uniview

Model: NVR501-08B-P8

Type: Network Video Recorder (NVR)

Number of Channels: 8 IP Channels

Equipped with 8 independent PoE ports for direct camera connection and operation

Supports Plug & Play for easy network camera installation and operation

Supports IEEE 802.3af and IEEE 802.3at PoE standards

Maximum power per PoE port: 30W

Total PoE budget up to 75W

Supports Ultra 265, H.265, and H.264 video compression

Supports recording resolutions up to 16MP

Supports resolutions of 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, and more

Supports decoding up to 8 channels at 4MP resolution at 30fps using Ultra 265 or H.265

Data Bandwidth Input bandwidth up to 80Mbps

Output bandwidth up to 64Mbps

Supports up to 128 remote users

Supports ONVIF-compatible cameras with Profile S, Profile G, and Profile T

Supports RTSP protocol

Features HDMI output with resolutions up to 4K (3840×2160) at 30Hz

Features VGA output with resolutions up to 1920×1080

Supports simultaneous HDMI and VGA playback

Features one RCA audio input

Features one RCA audio output

Supports two-way audio via input and output

Supports simultaneous playback of up to 8 channels

Supports ANR for improved recording reliability during network outages with compatible cameras

Supports intelligent camera-based analysis features such as Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, and Ultra Motion Detection

Supports intelligent search Vehicle and person tracking, People Counting reports, and Heat Map when using supported cameras

Equipped with one SATA interface for hard drive installation

Supports hard drives up to 16TB according to the current official page

Equipped with an RJ45 10/100Mbps network port

Equipped with a USB 2.0 port

Equipped with a USB 3.0 port

Supports P2P, IPv6, HTTPS, DDNS, and SNMP

Supports Cloud Upgrade
