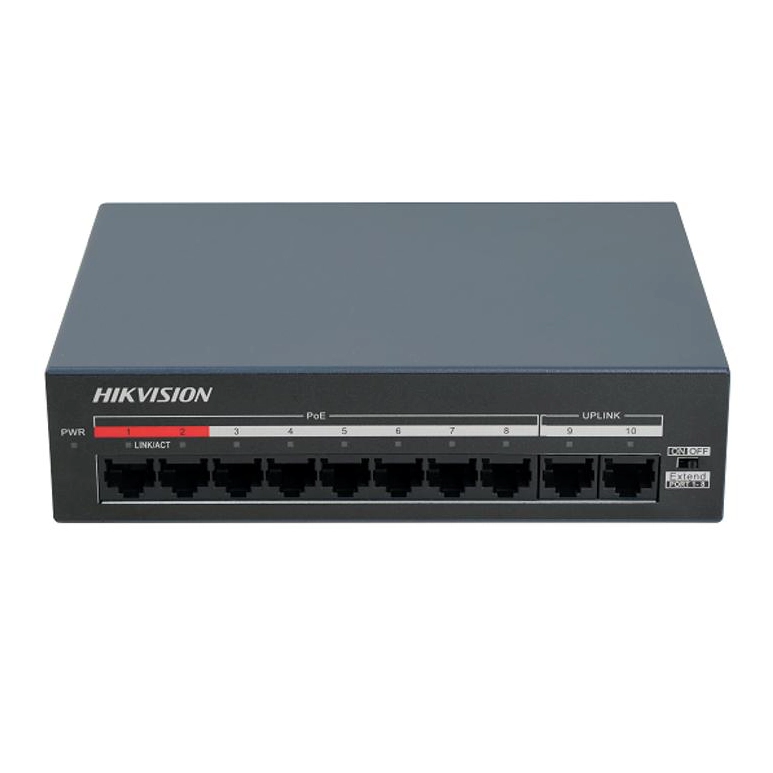

Brand: Hikvision
Model: DS-XS10-P
Type: Unmanaged PoE Switch
Speed: Fast Ethernet (10/100 Mbps)
Total RJ45 Ports: 10 ports
PoE Ports: 8 x 10/100 Mbps RJ45 ports
Uplink Ports: 2 x 10/100 Mbps RJ45 ports (for network or NVR connection)
PoE Ports: Ports 1 through 8
Max PoE Power per Port: 30W
Total PoE Power Budget: 60W
Automatically detects compatible PoE-powered devices
Plug-and-play design; requires no configuration or software management
Supports long-range mode, extending network reach up to 300 meters on PoE ports 1–8
In “Extend” mode: Transmission distance reaches 300 meters at 10 Mbps
With “Extend” mode off: Transmission distance reaches 100 meters at 100 Mbps
Actual long-range camera reach varies based on camera type and cable quality/condition
Ports 1 and 2 support high priority for critical network devices
MAC Address Table: 2K
Internal Buffer Memory: 0.77 Mbits
LED indicators for connection status and data activity
Durable metal housing
Suitable for powering IP surveillance cameras and PoE-compatible network devices
Ideal for shops, warehouses, hotels, small facilities, and surveillance systems requiring long-distance cabling
