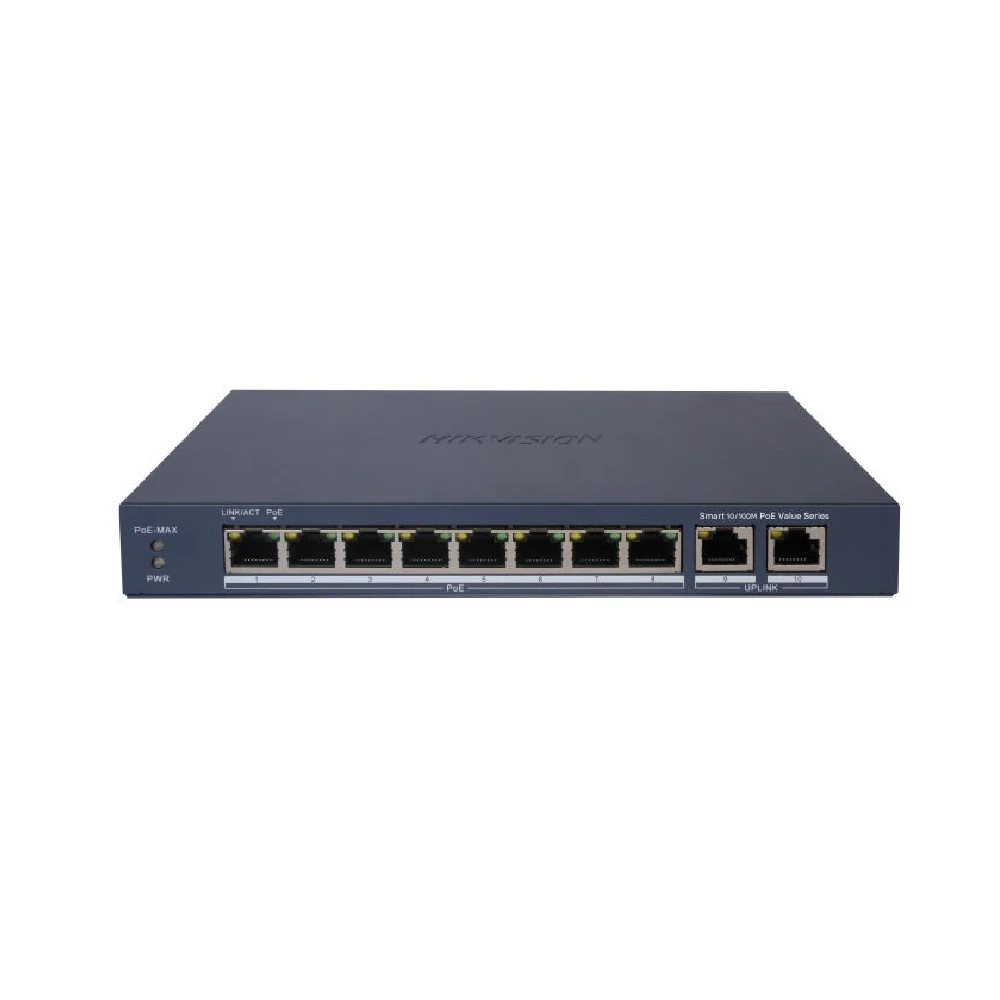

Hikvision DS-3E1310P-EIM 8 Port Fast Ethernet Smart PoE Switch

Brand: Hikvision

Model: DS-3E1310P-EI/M

Type: Smart Managed PoE Switch

8 × 10/100Mbps PoE Ports

2 × Gigabit RJ45 Ports

Total RJ45 Ports: 10

PoE Ports: Ports 1 to 8

Supports IEEE 802.3af and IEEE 802.3at PoE

Maximum PoE Power per Port: 30W

Total PoE Power Budget: 60W

Supports PoE Watchdog to Automatically Detect and Restart Unresponsive Cameras

Supports Long-Range PoE Transmission on Ports 1–8

Long-Range Transmission Distance: up to 300m

Actual Performance May Vary Depending on Camera Model and Cable Condition

Supports IEEE 802.1Q VLAN

VLAN ID Range: 1–4094

Supports up to 4094 VLANs

Supports Access and Trunk Port Modes

Supports Port Isolation

Supports Static Link Aggregation

Supports One Link Aggregation Group

Supports QoS

Supports Port-Based Priority

Supports SP and WRR Priority Scheduling

Supports DSCP-Based QoS Policies

Supports IEEE 802.1D STP

Supports IEEE 802.1w RSTP

Supports DHCP Snooping

Supports IEEE 802.1ab LLDP

Supports Port Mirroring

Supports Cable Detection

Supports Web-Based Device Management

Supports DHCP Client

Supports HikCentral Professional Management

Supports Remote Management through Hik-Partner Pro

Hik-Partner Pro Supports Port Speed and Bandwidth Monitoring

Supports PoE Power Usage Monitoring

Supports Network Topology Display

Supports Alarm Status Monitoring

Supports Remote Port and Device Restart

Supports Remote Long-Range Mode Activation

Supports Remote Firmware Upgrade

MAC Address Table: 4K

Internal Cache: 2Mbits

Whole-Device Switching Performance: up to 9.6Gbps

Port Switching Performance: 5.6Gbps

Whole-Device Packet Forwarding Rate: up to 7.14Mpps

Port Packet Forwarding Rate: 4.17Mpps

6kV Surge Protection

Metal Housing

Desktop and Wall-Mount Installation

Power Supply: 54V DC

Maximum Power Consumption: 65W

Idle Power Consumption: 5W

Operating Temperature: 0°C to 40°C

Operating Humidity: 5% to 95%, Non-Condensing

Dimensions: 217.6 × 27.6 × 108.5mm
