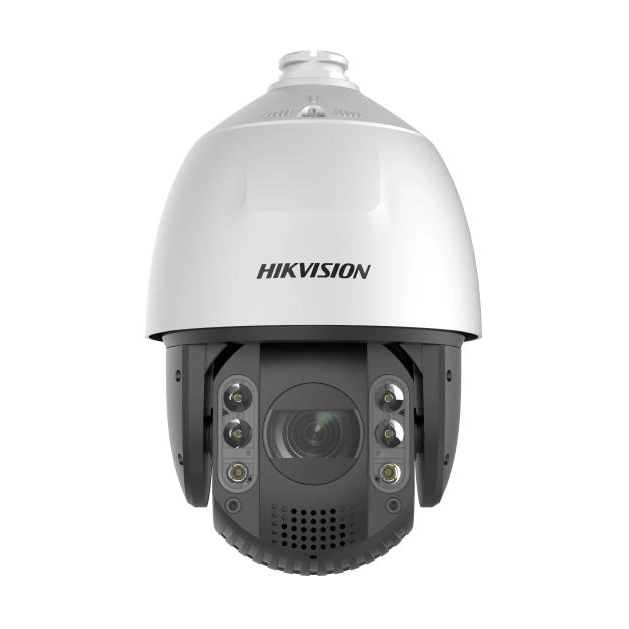

Hikvision DS-2DE7A432IW-AEB(T5) 4MP 32X DarkFighter IR Network Speed Dome PTZ Camera

Brand: Hikvision

Model: DS-2DE7A432IW-AEB(T5)

Type: Network Speed Dome PTZ Camera

Resolution: 4MP

Maximum Resolution: 2560 × 1440

Image Sensor: 1/1.8″ Progressive Scan CMOS

Powered by DarkFighter Technology for Excellent Low-Light Performance

Minimum Color Illumination: 0.005 Lux at F1.5

Minimum B/W Illumination: 0.001 Lux at F1.5

0 Lux with IR.

Optical Zoom: 32X

Digital Zoom: 16X

Focal Length: 5.9mm to 188.8mm

Maximum Aperture: F1.5

Zoom Speed: Approximately 4.8 Seconds

Horizontal FOV: 50.8° to 2.6°

Vertical FOV: 29.4° to 1.5°

Diagonal FOV: 57.4° to 3°

IR Night Vision Distance: up to 200m

Continuous 360° Pan Rotation

Tilt Range: -15° to 90° with Auto Flip

Configurable Pan Speed: 0.1° to 160°/s

Preset Pan Speed: up to 240°/s

Configurable Tilt Speed: up to 120°/s

Preset Tilt Speed: up to 200°/s

Supports up to 300 Presets

Supports 8 Patrols

Up to 32 Presets per Patrol

Supports 4 Pattern Scans

Supports Power-Off Memory

Supports 3D Positioning

Supports Auto-Tracking and Manual Tracking

Deep-Learning Human and Vehicle Classification

Supports Line Crossing, Intrusion, Region Entrance and Region Exiting Detection

Supports Unattended Baggage and Object Removal Detection

Supports Face Capture

Captures up to 5 Faces Simultaneously

Built-in Speaker with up to 30m Effective Distance

Supports Audible Warning

Supports White Flashing Light Alarm

1 × Audio Input

1 × Audio Output

Environment Noise Filtering

Built-in Microphone is Not Listed in the Official Specification

Supports H.265+, H.265, H.264+ and H.264 Compression

Supports Triple Video Streams

120dB WDR

BLC, HLC and 3D DNR

Digital Defog

Electronic Image Stabilization – EIS

Built-in Memory Card Slot

Supports microSD / SDHC / SDXC up to 256GB

Supports NAS Network Storage and ANR

1 × RJ45 10/100Mbps Ethernet Port

Supports ONVIF Profile S, G and T

Compatible with Hik-Connect, iVMS-4200 and HikCentral Professional

Supports up to 20 Simultaneous Live Views

Supports up to 32 Users.

2 × Alarm Inputs

1 × Alarm Output

Supports 24VAC Power Supply

Supports Hi-PoE

Maximum Power Consumption: 42W

IP66 Weatherproof Rating

IK10 Vandal Resistance, Excluding Glass Window

6000V Lightning and Surge Protection

Operating Temperature: -30°C to 65°C

Dimensions: Ø220 × 363.3mm

Weight: Approximately 5kg
