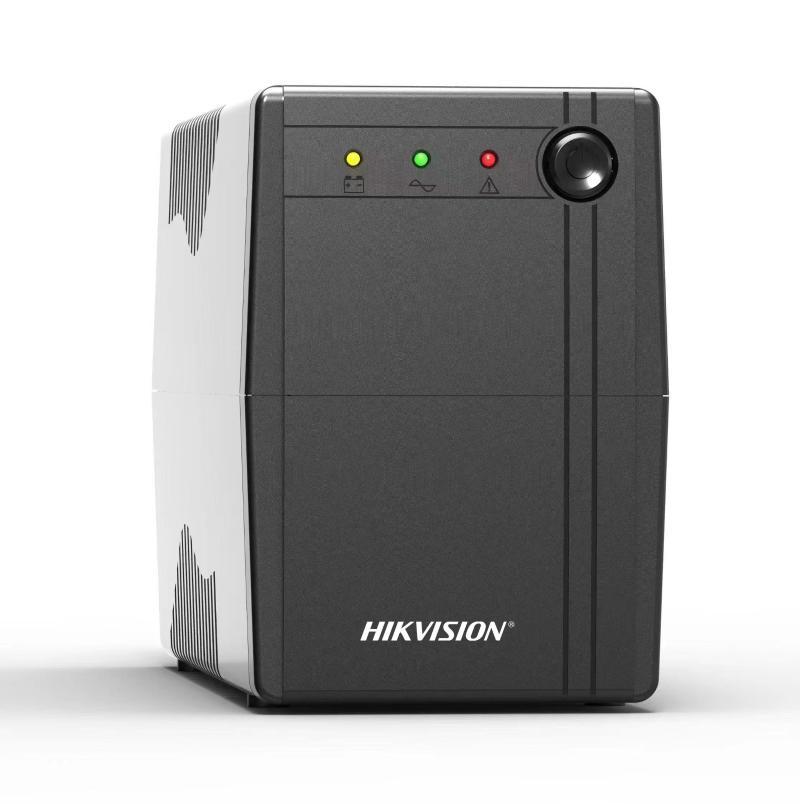

Hikvision DS-UPS1000 1000VA/600W Back UPS

Brand : Hikvision

Model: DS-UPS1000 1000VA/600W

Type: Back UPS

Power : UPS Capacity
1000 VA / 600 W
Input : Input Voltage Range
140 VAC to 290 VAC; 85 VAC to 150 VAC
Input Frequency
50/60 Hz self-adaptive
Plug Type
UK TYPE G;Type B (NEMA 5-15);Schuko
Output : Output Frequency
50/60 Hz ± 0.5 Hz self-adaptive
Output Voltage Range
210 VAC to 235 VAC;110 VAC to 125 VAC
Transfer Time
≤ 10 ms
Waveform
PWM
Outlet Type
Universal
Outlet Number
2
Battery : Battery Type
12 V/9 Ah, lead-acid battery
Recharge Time
4-6 hours recover to 90% capacity
Typical Backup Time
Run time at 60w: 60 min

Run time at 150w: 15 min

Run time at 300w: 2 min

Interface : Communicate Ports
No
Protection : Full Protection
Surge protection, Overload protection, Discharge protection, Short circuit protection

Indicator :
Display
LED indicator

Working Mode (AC Mode): Solid green

Charging Mode (DC Mode): Solid red

Overloading Mode: Flashing yellow

Alarm
Charging Mode (DC mode): Sounding every 8 seconds

Low Battery: Sounding every second

Overloading Mode: Sounding every 0.5 seconds

Fault: Continuously sounding

Built-in AVR

Super fast charging

Wide input voltage range

Overload protection

Short circuit protection

Surge protection
